Ronald Dason P Royan. A
OCC Pulp Mill

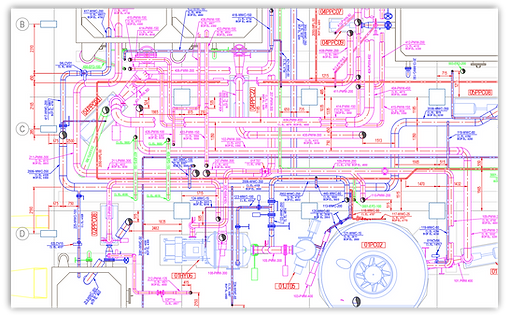

3D Layout and Piping
3D Layout and Piping
OCC Pulp Mill
1/4
OCC Plant

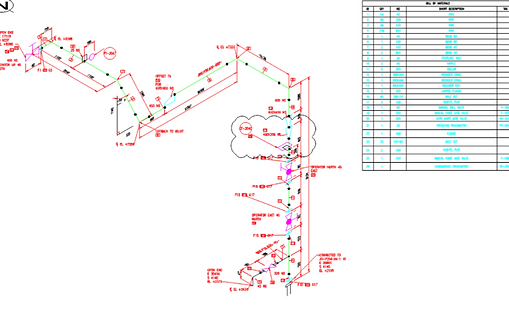

2D and 3D Layout, Foundation, Piping Layout and Piping Support with Isometric and MTO
OCC Plant
2D and 3D Layout, Foundation, Piping and Piping Support with Isometric and MTO

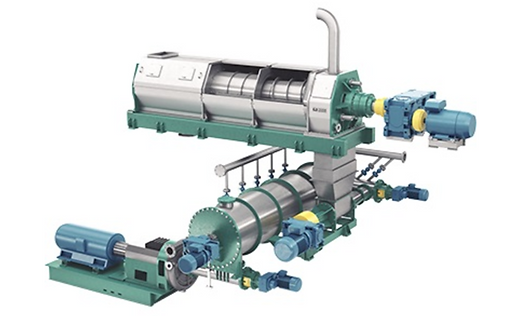

Hot Dispersion System
This system is used in Pulp Mill to improve quality of paper
Silo
Water Colleting System from Wire Part (Approach Flow System)
Rope Crawler
Used as UVT for Inspection of Long Rope at Heights
Disc Filter
Used in Pulp Mill to Thicken the Pulp and Recover the Fibre
Biomass Digester System
Biomass Digester Sytem comprises of Feeder, Plug Screw, Shredder, Digester and Flash Chamber.
